Shielding Cover Stamping Solutions
As AI servers, high-speed communication equipment, industrial computers, and consumer electronics continue evolving toward higher density, miniaturization, and faster performance, the requirements for precision, stability, and electrical conductivity in metal structural components are becoming increasingly demanding. In applications where EMI shielding, grounding reliability, and high-speed automated assembly are critical, electronic stamped components are no longer just simple metal parts — they are key components that directly affect product reliability, signal stability, and mass production consistency.
At Kun Feng Metal Industrial Co., Ltd., we have long provided precision stamping manufacturing services for the electronics and electrical industries, supporting OEM customers in developing a wide range of electronic stamped components, including shielding covers, grounding spring clips, mounting brackets, and conductive structural parts. Beyond mass production capability, we focus on tooling integration, material selection, forming stability, and secondary process coordination to help customers achieve the optimal balance between product performance, assembly efficiency, and cost control.

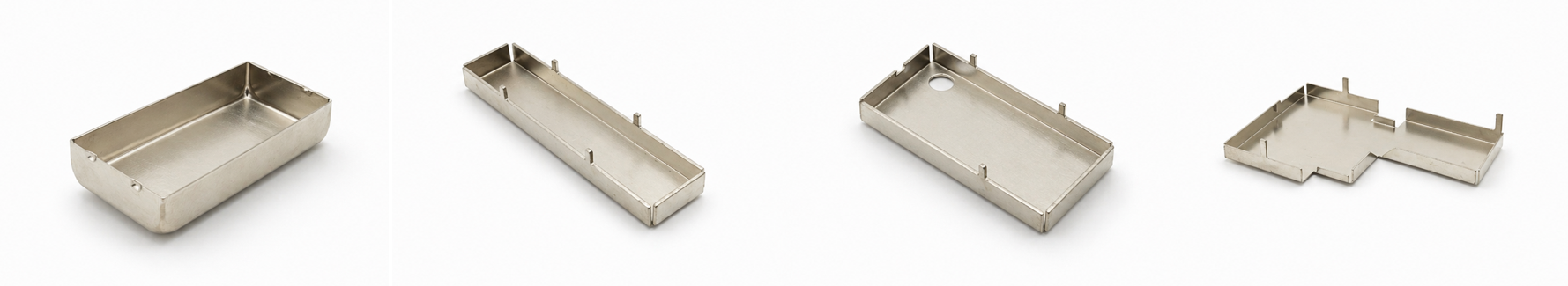

Shielding covers, for example, require not only stable structural strength, but also reliable conductivity, grounding contact stability, spring durability, and assembly consistency. These products typically involve thin sheet materials, high-precision forming, and large-scale production control, making integrated tooling capability and precision stamping experience essential for successful development.
Why Do Shielding Covers Require Integrated Stamping Capabilities?
In electronic equipment, AI servers, communication products, and industrial control systems, shielding covers are critical components that combine both structural and electrical functions.
Their primary functions include:
- EMI Shielding (Electromagnetic Interference Shielding)
- Grounding Reliability
- Structural Protection and Positioning
- Heat Dissipation Support
The essence of these products can be summarized as:
Thin Sheet Metal + Precision Forming + Stable Contact Performance + Mass Production Consistency
This is exactly where precision stamping demonstrates its greatest advantages.
Common Design Challenges for Shielding Covers
During actual product development and mass production, shielding covers often face the following challenges:
- Unstable grounding spring contact caused by insufficient elasticity or fatigue failure
- Thin material deformation and warpage affecting assembly accuracy and EMI shielding performance
- Excessive production cost due to separated processes such as laser cutting, bending, and secondary operations
- Conflicts between surface treatment and conductivity requirements, such as corrosion resistance versus electrical performance
As a result, shielding cover development is not simply a manufacturing issue — it is an integrated engineering challenge involving materials, tooling, forming, and electrical performance.
Kun Feng’s Stamping Solution Approach
We participate from the early product development stage to help customers optimize overall structure and manufacturing processes.
■ Integrated Spring Structure Design
- One-piece EMI grounding spring integration
- Controlled spring travel and rebound force
- Reduced risk of poor contact and fatigue failure
Through integrated tooling design, grounding reliability and assembly consistency can be significantly improved.
■ High-Stability Thin Sheet Forming Technology
- Suitable for materials ranging from 0.2 ~ 1.0 mm
- Controlled material holding and forming sequence
- Reduced warpage, internal stress, and dimensional variation
For high-density electronic products, stable thin-sheet forming capability is critical to maintaining mass production quality.
■ Progressive Die Integration for Multiple Processes
We integrate the following operations into a single progressive die system:
- Piercing
- Forming
- Bending
- Embossing
- Integrated spring structures
Multi-process integration helps improve production efficiency, reduce unit cost, and maintain consistent mass production quality.
Material Selection Is Essentially Performance Engineering

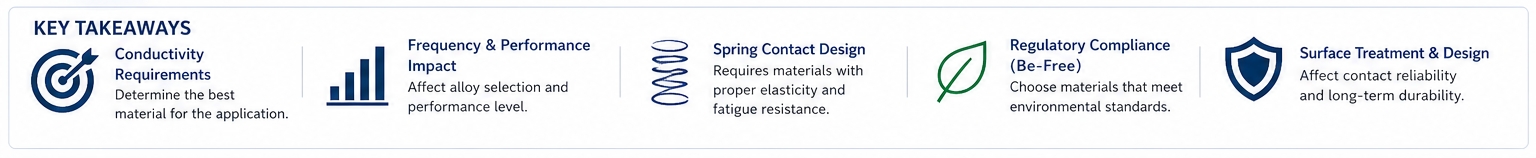

The material selected for shielding covers directly affects the following key performance factors:
- Electrical Conductivity
- Contact Resistance
- Spring Performance & Fatigue
- Cost Efficiency
Therefore, material selection is not simply a material issue — it is an important part of overall product performance design.
Material Property Comparison Chart
| Material Category | Common Materials | Electrical Conductivity | Elasticity | Formability | Cost | Key Characteristics | Typical Applications |
|---|---|---|---|---|---|---|---|
| Steel (Ferrous) | SECC / SPCC | ★ | ★ | ★★★ | ★ | High strength, low cost, easy to process, good plating | Structural covers, large shielding components |
| Stainless Steel | SUS301 / SUS304 | ★ | ★★★ | ★★ | ★★ | Good elasticity, fatigue resistant, corrosion resistant | Spring contacts, grounding clips |
| Copper Alloys – Phosphor Bronze | Phosphor Bronze | ★★ | ★★ | ★★★ | ★★ | Good conductivity and formability, cost-effective | General grounding, shielding covers |
| Copper Alloys – Beryllium Copper | Beryllium Copper | ★★★★★ | ★★★★★ | ★★★ | ★★★★★ | Excellent conductivity and elasticity, high reliability | High-frequency connectors, high-performance modules |
| Copper Alloys – Nickel Silver | Nickel Silver (Cu-Ni-Zn Alloy) |
★★★ | ★★★ | ★★★ | ★★ | Balanced conductivity and elasticity, resistant to oxidation, Be-free, regulation friendly | Precision shielding covers, spring contacts, high-reliability grounding |
Rating Guide: ★ Low ★★ Medium ★★★ Good ★★★★ Very Good ★★★★★ Excellent

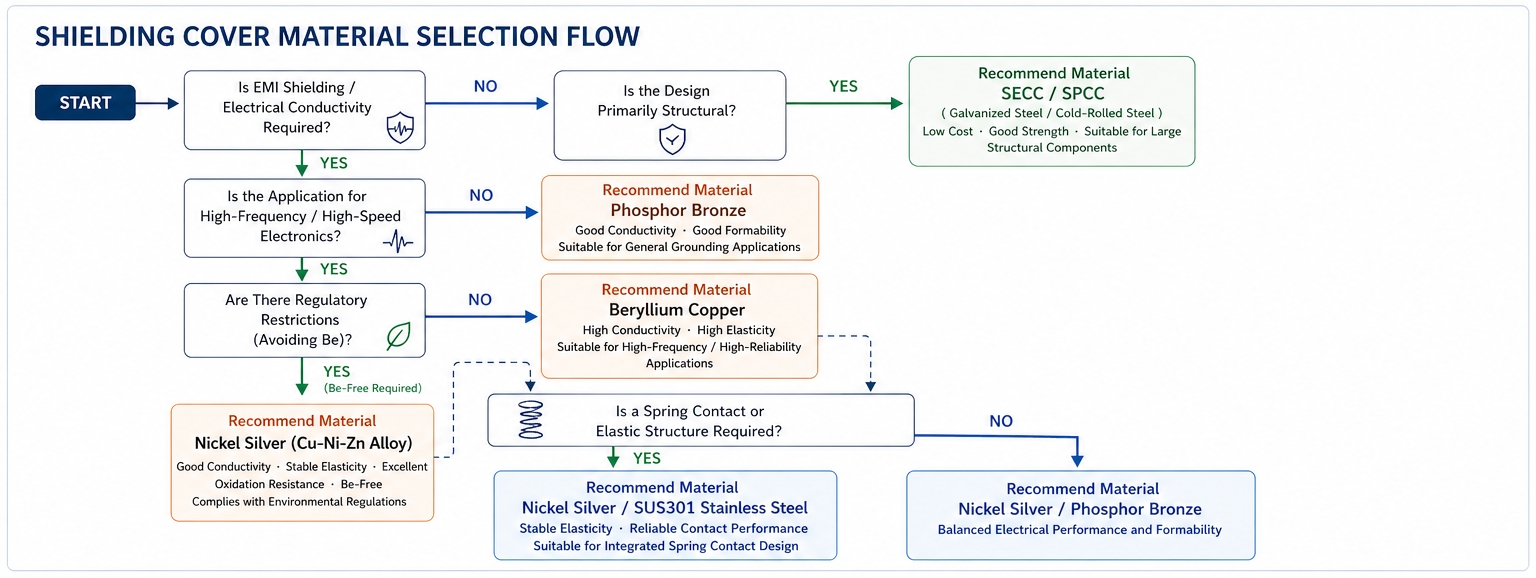

Shielding Cover Material Selection Flowchart
Why Is Nickel Silver a Critical Material?
In practical applications, nickel silver is often selected to solve:
The balance between conductivity, elasticity, and regulatory compliance requirements
Its engineering advantages include:
- Stable contact resistance with excellent oxidation resistance
- Balanced elasticity and formability
- Better conductivity than stainless steel
- Be-free composition that aligns with European and American environmental regulations
As a result, nickel silver is commonly used in:
- Precision shielding covers
- Integrated grounding spring structures
- High-reliability electronic modules
Surface Treatment and Conductivity Design
Different surface treatments influence conductivity, corrosion resistance, and contact stability.
Common options include:
| Surface Treatment | Characteristics | Applications |
|---|---|---|
| Nickel Plating (Ni) | Balanced corrosion resistance and conductivity | General applications |
| Tin Plating (Sn) | Low contact resistance | Grounding contact surfaces |
| Zinc Plating (Zn) | Corrosion protection focused | Cost-oriented products |
| Conductive Coating | EMI shielding applications | Specific applications |
| Selective Non-Plating | Maintains conductivity | Critical contact points |
Therefore, surface treatment design must be planned together with conductivity requirements.
Applicable Industries
Shielding covers and electronic stamped components are widely used in:
- AI Servers
- Networking Equipment
- Consumer Electronics
- Industrial PCs
- Automotive Electronics
As demand for high-frequency and high-speed devices continues to grow, requirements for EMI shielding and grounding reliability are also increasing.
Why Choose Stamping Processes?
| Item | Stamping | Laser / CNC |
|---|---|---|
| Unit Cost | Low (Mass Production) | High |
| Dimensional Stability | High | Medium |
| Production Speed | Fast | Slow |
| Consistency | High | Medium |
For medium- to high-volume production, stamping provides the best overall balance of cost efficiency and production stability.
Conclusion: The Key to Shielding Cover Design Is Not a Single Process
The success of shielding cover mass production does not depend on a single manufacturing method, but on the integration of:
- Material selection
- Spring structure design
- Stamping process integration
- Surface treatment control
Only through complete integration of these elements can manufacturers simultaneously achieve:
- Electrical Performance
- Structural Stability
- Cost Efficiency
- Mass Production Consistency
Our Value
At Kun Feng Metal Industrial Co., Ltd., we provide more than manufacturing capability — we offer integrated solutions from design to mass production, including:
- Design Optimization (DFM Support)
- Integrated Tooling Development
- Stable Mass Production Quality
- Long-Term Supply Capability
- Integrated Solutions from Design to Production
If your project requires high-precision electronic metal components, contact Kun Feng Metal Industrial Co., Ltd. to discuss your drawings and production requirements. We are ready to help you develop precision stamping solutions that combine performance, stability, and manufacturing efficiency.
